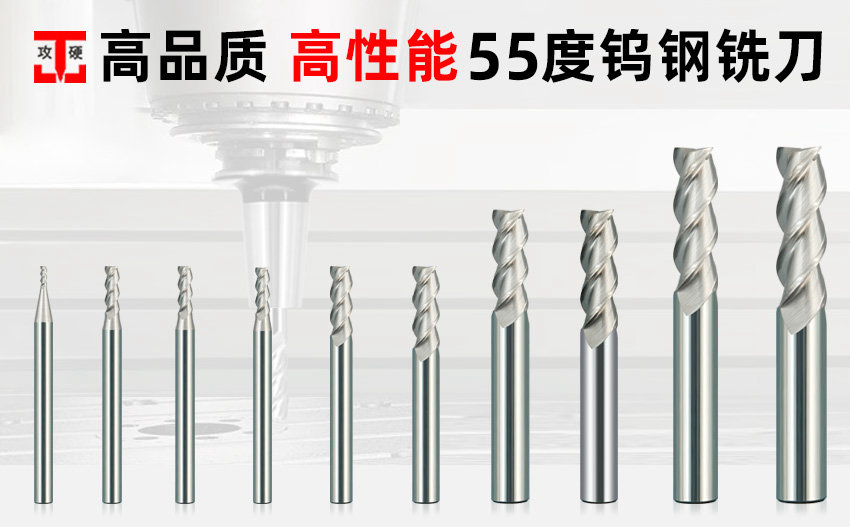

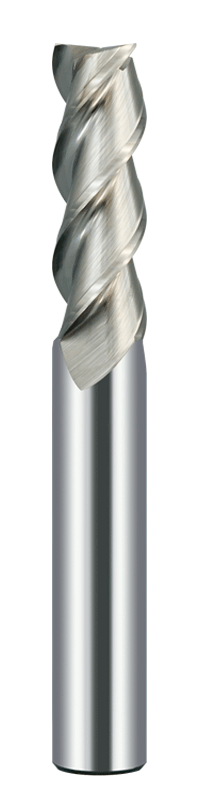

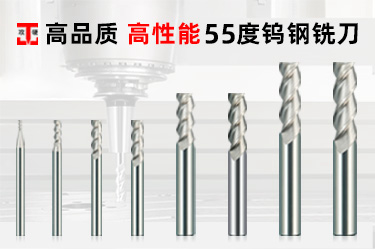

55度鋁用鎢鋼銑刀
| 55度鎢鋼鋁用銑刀產品信息 | |||
| 品牌 | 攻硬 | 材質 | 優質鎢鋼 |
| 加工材料 | 銅、鋁、鋁合金、鋅、鎂、鎂合金等材料 | ||
| 優勢特點 | 刃口鋒利，高光潔度，高效穩定，提高加工效率 | ||
| 適配機床 | CNC加工中心、CNC電腦鑼、精雕機 | ||
| 刃 ? 徑 | 刃 ? 長 | 柄 ? 徑 | 總 ? 長 |
| 1 | 3 | 4 | 50 |
| 2 | 6 | 4 | 50 |
| 3 | 9 | 4 | 50 |
| 4 | 12 | 4 | 50 |
| 4 | 16 | 4 | 75 |
| 4 | 20 | 4 | 100 |
| 6 | 18 | 6 | 50 |
| 6 | 24 | 6 | 75 |
| 6 | 30 | 6 | 100 |
| 6 | 45 | 6 | 150 |
| 7 | 21 | 8 | 60 |
| 8 | 24 | 8 | 60 |
| 8 | 30 | 8 | 75 |
| 8 | 35 | 8 | 100 |
| 8 | 50 | 8 | 150 |
| 8 | 70 | 8 | 200 |
| 9 | 27 | 10 | 75 |
| 10 | 30 | 10 | 75 |
| 10 | 40 | 10 | 100 |
| 10 | 60 | 10 | 150 |
| 10 | 80 | 10 | 200 |
| 11 | 33 | 12 | 75 |
| 12 | 36 | 12 | 75 |
| 12 | 45 | 12 | 100 |
| 12 | 60 | 12 | 150 |
| 12 | 80 | 12 | 200 |
| 13 | 39 | 14 | 100 |
| 14 | 42 | 14 | 100 |
| 14 | 60 | 14 | 150 |
| 14 | 85 | 14 | 200 |
| 15 | 45 | 16 | 100 |
| 16 | 48 | 16 | 100 |
| 16 | 60 | 16 | 150 |
| 16 | 85 | 16 | 200 |
| 18 | 54 | 18 | 100 |
| 18 | 80 | 18 | 150 |
| 20 | 60 | 20 | 100 |
| 20 | 75 | 20 | 150 |
| 20 | 85 | 20 | 200 |
| 鋁用銑刀切削參數表 | |||||
| 鋁用銑刀 | 切削材料 | 銑刀刃徑 | 主軸轉速r/min | 進給量m/min | 切削深度mm |
 | 銅 鋁 | 2 | 4500-5000 | 50-80 | 0.3-0.5 |
| 3-4 | 4500-5000 | 80-100 | 0.5-1 | ||
| 5-6 | 3000-4000 | 100-150 | 1 | ||
| 8-10 | 3000-4000 | 150-200 | 1-2 | ||
| 12以上 | 3000-4000 | 200-300 | 2-3 | ||
| POM | 2 | 5500-6500 | 100-130 | 0.3-0.5 | |
| 3-4 | 4500-5000 | 120-180 | 0.5-1 | ||
| 5-6 | 3000-4000 | 200-300 | 1-2 | ||
| 8-10 | 3000-4000 | 250-350 | 2-4 | ||
| 12以上 | 3000-4000 | 250-350 | 3-6 | ||
有機玻璃 | 2 | 5000-6000 | 80-120 | 0.3-0.5 | |
| 3-4 | 4000-5000 | 100-150 | 0.5-1 | ||
| 5-6 | 3000-4000 | 200-300 | 1-2 | ||
| 8-10 | 3000-4000 | 250-350 | 2-4 | ||
