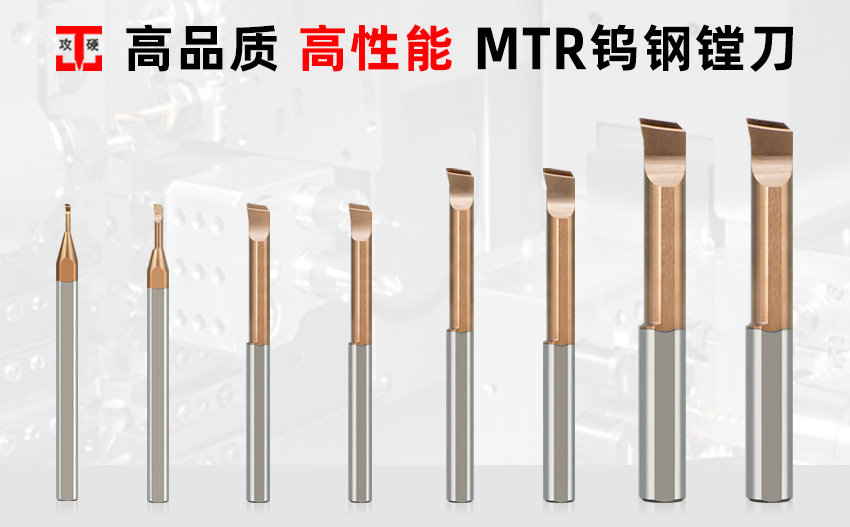

MTR鎢鋼內孔鏜刀
| MTR鎢鋼鏜刀產品信息 | |||
| 品牌 | 攻硬 | 材質 | 優質鎢鋼 |
| 加工材料 | 不銹鋼、鋼件、鈦合金、高溫合金等50度以下材料 | ||
| 優勢特點 | 納米耐磨涂層，刃口鋒利，高光潔度，高效穩定 | ||

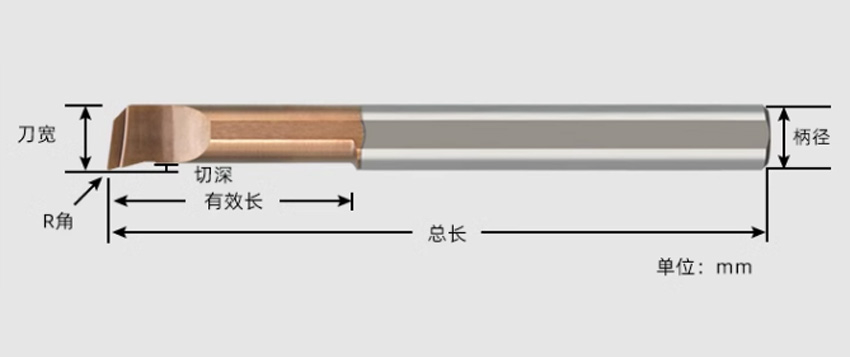

| MTR鎢鋼鏜刀規格參數表 | ||||||
 | ||||||
| 型號 | 刀寬 | R角 | 有效長 | 切深 | 柄徑 | 總長 |
| MTR1-R0.05-L4 | 0.9 | R0.05 | 4 | 0.2 | 4 | 50 |
| MTR1.5-R0.1-L6 | 1.4 | R0.1 | 6 | 0.2 | 4 | 50 |
| MTR2-R0.05-L10 | 1.8 | R0.05 | 10 | 0.2 | 4 | 50 |
| MTR2-R0.15-L5 | 1.8 | R0.15 | 5 | 0.2 | 4 | 50 |
| MTR2-R0.1-L10 | 1.8 | R0.1 | 10 | 0.2 | 4 | 50 |
| MTR2-R0.2-L10 | 1.8 | R0.2 | 10 | 0.2 | 4 | 50 |
| MTR3-R0.05-L10 | 2.7 | R0.05 | 10 | 0.3 | 4 | 50 |
| MTR3-R0.05-L15 | 2.7 | R0.05 | 15 | 0.3 | 4 | 50 |
| MTR3-R0.1-L15 | 2.7 | R.01 | 15 | 0.3 | 4 | 50 |
| MTR3-R0.2-L10 | 2.7 | R0.2 | 10 | 0.3 | 4 | 50 |
| MTR3-R0.2-L15 | 2.7 | R0.2 | 15 | 0.3 | 4 | 50 |
| MTR4-R0.05-L15 | 3.7 | R0.05 | 15 | 0.4 | 4 | 50 |
| MTR4-R0.1-L10 | 3.7 | R0.1 | 10 | 0.4 | 4 | 50 |
| MTR4-R0.1-L15 | 3.7 | R0.1 | 15 | 0.4 | 4 | 50 |
| MTR4-R0.1-L22 | 3.7 | R0.1 | 22 | 0.4 | 4 | 50 |
| MTR4-R0.2-L10 | 3.7 | R0.2 | 10 | 0.4 | 4 | 50 |
| MTR4-R0.2-L15 | 3.7 | R0.2 | 15 | 0.4 | 4 | 50 |
| MTR4-R0.2-L22 | 3.7 | R0.2 | 22 | 0.4 | 4 | 50 |
| MTR5-R0.05-L15 | 4.8 | R0.05 | 15 | 0.6 | 5 | 50 |
| MTR5-R0.1-L15 | 4.8 | R0.1 | 15 | 0.6 | 5 | 50 |
| MTR5-R0.1-L22 | 4.8 | R0.1 | 22 | 0.6 | 5 | 50 |
| MTR5-R0.1-L30 | 4.8 | R0.1 | 30 | 0.6 | 5 | 50 |
| MTR5-R0.2-L15 | 4.8 | R0.2 | 15 | 0.6 | 5 | 50 |
| MTR5-R0.2-L22 | 4.8 | R0.2 | 22 | 0.6 | 5 | 50 |
| MTR5-R0.2-L30 | 4.8 | R0.2 | 30 | 0.6 | 5 | 60 |
| MTR6-R0.05-L15 | 5.8 | R0.05 | 15 | 0.6 | 6 | 50 |
| MTR6-R0.1-L15 | 5.8 | R0.1 | 15 | 0.6 | 6 | 50 |
| MTR6-R0.2-L15 | 5.8 | R0.2 | 15 | 0.6 | 6 | 50 |
| MTR6-R0.2-L22 | 5.8 | R0.2 | 22 | 0.6 | 6 | 50 |
| MTR6-R0.2-L30 | 5.8 | R0.2 | 30 | 0.6 | 6 | 60 |
| MTR6-R0.2-L35 | 5.8 | R0.2 | 35 | 0.6 | 6 | 75 |
| MTR7-R0.2-L22 | 6.8 | R0.2 | 22 | 0.8 | 7 | 60 |
| MTR7-R0.2-L30 | 6.8 | R0.2 | 30 | 0.8 | 7 | 60 |
| MTR8-R0.2-L15 | 7.8 | R0.2 | 15 | 0.8 | 8 | 65 |
| MTR8-R0.2-L22 | 7.8 | R0.2 | 22 | 0.8 | 8 | 65 |
| MTR8-R0.2-L35 | 7.8 | R0.2 | 35 | 0.8 | 8 | 75 |
| MTR10-R0.2-35 | 9.8 | R0.2 | 35 | 1.0 | 10 | 75 |
