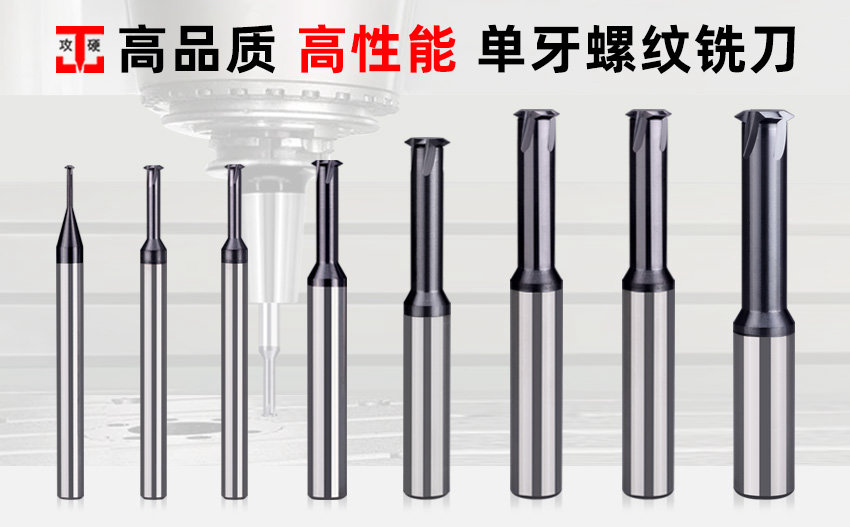

鎢鋼單牙螺紋銑刀
| 55度鎢鋼單牙螺紋銑刀產品信息 | |||
| 品牌 | 攻硬 | 材質 | 優質鎢鋼 |
| 加工材料 | 銅、鋁、鑄鐵、不銹鋼、合金鋼、工具鋼、調質鋼、鈦合金、模具鋼等55度以下材料 | ||
| 優勢特點 | 全磨制圓弧刃，刃口鋒利，高光潔度，耐磨性強 | ||
| 55度鎢鋼單牙螺紋銑刀規格參數表 | |||||||
 | |||||||

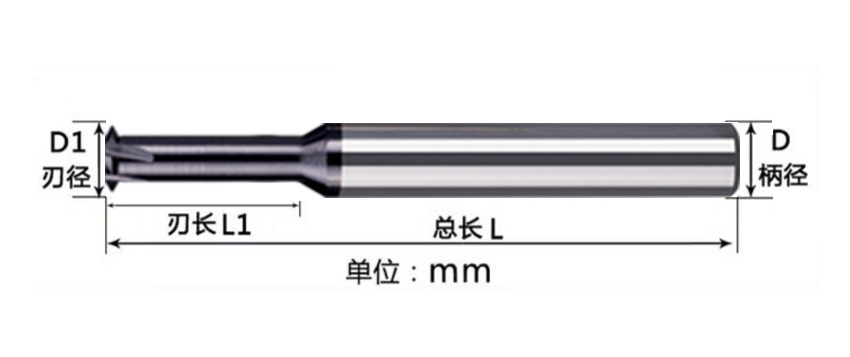

| 牙距 | 加工螺紋 | 刃徑 | 避空直徑 | 刃長 | 柄徑 | 總長 | 刃數 |
| P0.2 | M0.8*0.2 | 0.55 | 0.32 | 1.5 | 4 | 50 | 2 |
| P0.225 | M0.9*0.225 | 0.625 | 0.35 | 1.8 | 4 | 50 | 2 |
| P0.25 | M1.0*0.25 | 0.72 | 0.43 | 2.5 | 4 | 50 | 2 |
| P0.25 | M1.2*0.25 | 0.9 | 0.63 | 3.2 | 4 | 50 | 2 |
| P0.3 | M1.4*0.3 | 1.05 | 0.7 | 3.5 | 4 | 50 | 3 |
| P0.35 | M1.6*0.35 | 1.2 | 0.8 | 4.0 | 4 | 50 | 3 |
| P0.4 | M2.0*0.4 | 1.55 | 0.9 | 6.0 | 4 | 50 | 3 |
| P0.45 | M2.5*0.45 | 1.96 | 1.3 | 6.5 | 4 | 50 | 4 |
| P0.5 | M3.0*0.5 | 2.35 | 1.6 | 8.0 | 4 | 50 | 4 |
| P0.7 | M4.0*0.7 | 3.15 | 2.1 | 10 | 4 | 50 | 4 |
| P0.8 | M5.0*0.8 | 3.9 | 2.8 | 12 | 4 | 50 | 4 |
| P1.0 | M6.0*1.0 | 4.8 | 3.4 | 15 | 6 | 50 | 4 |
| P1.25 | M8.0*1.25 | 6.0 | 4.2 | 20 | 6 | 60 | 4 |
| P1.5 | M10*1.5 | 7.7 | 5.6 | 25 | 8 | 60 | 4 |
| P1.75 | M12*1.75 | 9.6 | 7.3 | 30 | 10 | 75 | 4 |
| P2.0 | M14*2.0 | 10 | 7.3 | 36 | 10 | 75 | 4 |
| P2.5 | M18*2.5 | 12 | 8.8 | 38 | 12 | 75 | 4 |
| P3.0 | M24*3.0 | 14 | 10.2 | 48 | 14 | 100 | 6 |
| P3.5 | M30*3.5 | 16 | 11.5 | 50 | 16 | 100 | 6 |
